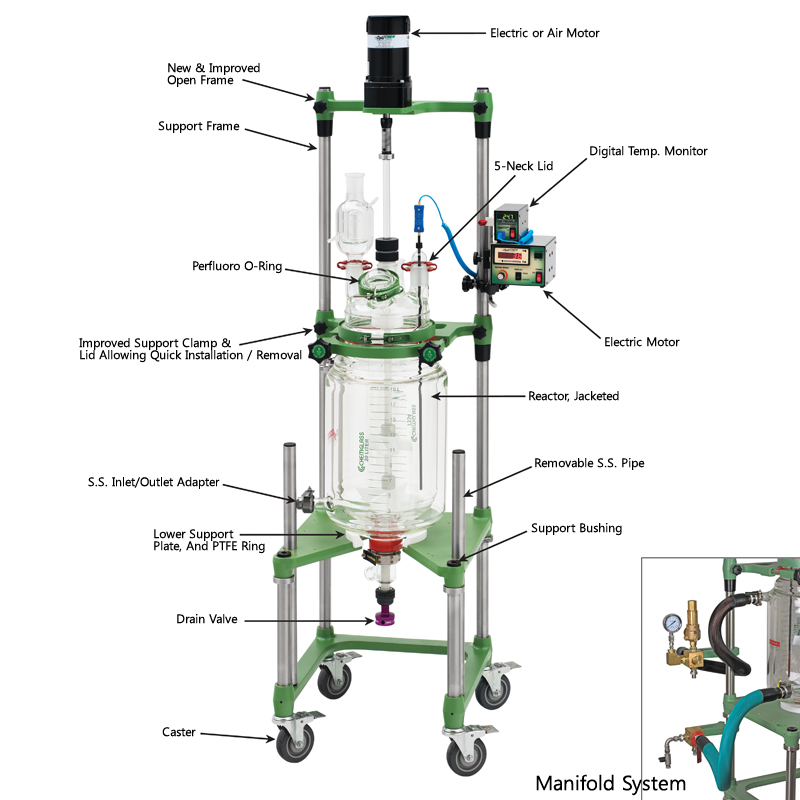

Large Process Reactor Sytem, Jacketed / 자켓식 대형 반응 시스템, 10, 20 L
● 높이 : Electric (1830 mm), Air (1750 mm) 모터 포함 높이임
● Valve 하단에서 바닥까지의 높이 : 390 mm (공통)
● Chemglass

(0개)
Large Process Reactor Sytem, Jacketed / 자켓식 대형 반응 시스템, 10, 20 L
Cat. No Model Description Unit Price
(VAT별도)		 납기 재고 주문/견적
R02-132-044 1965-610  Reactor System Large, 10Lit. Electronic 1/EA 49,680,800원 30 Day 0
R02-132-048 1964-610  Reactor System Large, 10Lit. Air 1/EA 47,460,000원 30 Day 0
R02-132-053 1965-610M  Jacketed Reactor Large, 10Lit. Electronic, Manifold 1/EA 61,613,600원 30 Day 0
R02-132-057 1964-610M  Jacketed Reactor Large, 10Lit. Air, Manifold 1/EA 59,334,300원 30 Day 0
R02-132-060 1965-620  Reactor System Large, 20Lit. Electronic, 1/EA 55,115,800원 30,525,200원 3 Day 1
R02-132-064 1964-620  Reactor System Large, 20Lit. Air 1/EA 52,999,300원 30 Day 0
R02-132-069 1965-620M  Jacketed Reactor Large, 20Lit. Electronic, Manifold 1/EA 67,817,200원 30 Day 0
R02-132-073 1964-620M  Jacketed Reactor Large, 20Lit. Air, Manifold 1/EA 65,537,800원 30 Day 0
Standard Component, 구성품
Cat. No Model Description Unit Price
(VAT별도)		 납기 재고 주문/견적
R02-132-232 1930-31  Process Vessel, Jacketed 10 Lit., I.D. 200mm h490mm 1/EA 12,927,200원 30 Day 0
  R02-132-240 1930-34  Process Vessel, Jacketed 20 Lit., I.D. 200mm h523mm 1/EA 0원 30 Day 0 문의
R02-132-410 1968-67  2inch Beaded Pipe Coupling 1/EA 481,400원 30 Day 0
R02-132-504 3498-03  1/2inch OD S.S Rod Bent 90˚ 1/EA 242,900원 3 Day 1
R02-132-508 3499-02  Extension Cord, Standard Female to Mini Male Plug Type "T" 1/EA 125,200원 0 Day 0
R02-132-512 9253-10  Kwik Klamp ∥ 4 1/EA 188,100원 3 Day 2
R02-132-518 2044-30  Shaft Coupling 19mm for Electric 1/EA 732,500원 3 Day 1
R02-132-584 3002-L-45  Safe-Lab Stopper PTFE 45/50 1/EA 367,800원 0 Day 0
R02-132-606 145-09  Clamp, Keck, Brown, Standard Taper, Fits Joint Size 45/50 10/pk 1/EA 188,600원 30 Day 0
R02-132-648 1217-25  Reflux Condenser, Thimble Shape w/ glass hose connection 45/50 1/EA 1,087,200원 30 Day 0
R02-132-652 2097-10  Stirrer Shaft 10L용 19mm h780mm 1/EA 988,600원 30 Day 0
R02-132-656 2097-12  Stirrer Shaft 15L, 20L용 19mm h880mm 1/EA 1,450,100원 30 Day 0
R02-132-660 2077-H-05  PTFE Stir Bearing 19mm 1/EA 1,318,300원 30 Day 0
R02-132-664 149-01  Glass Cap 60mm 1/EA 354,700원 30 Day 0
R02-132-668 141-T-11  Release Clamp PTFE Coated 60mm 1/EA 406,400원 30 Day 0
R02-132-672 147-80  Perfluoro O-ring 60mm 1/EA 837,100원 30 Day 0
R02-132-676 147-84  Perfluoro O-ringe 200mm 1/EA 1,897,700원 30 Day 0
R02-132-692 1969-A-05  S.S. Adapter 1 M16 x 1 Male 1/EA 254,300원 30 Day 0
R02-132-696 1968-66  1inch Beaded Pipe Coupling 1/EA 370,400원 30 Day 0
R02-132-708 2025-20  Air Motor 3/8Hp 1/EA 3,398,800원 30 Day 0
R02-132-712 2025-10  Regulato Air Motor Only 1/EA 851,400원 30 Day 0
R02-132-720 2044-16  Shaft Coupling (Air) 19mm 1/EA 732,500원 30 Day 0
R02-132-732 3498-01  Digital Temperature Monitor, Type "T" 1/EA 2,605,300원 3 Day 1
R02-132-744 1042-E-10  Thermocouple Adapter 45/50 1/EA 209,000원 30 Day 0
R02-132-752 141-T-15  Release Clamp PTFE Coated 200mm 1/EA 730,000원 30 Day 0
R02-132-756 2093-20  Catching Cup PTFE 1/EA 768,400원 3 Day 2
R02-132-760 3498-106  Long Thermocouple, inchTinch 1/4inch Diameter x 660 mm 1/EA 402,400원 30 Day 0
R02-132-764 2095-05  PTFE Agitator 60˚ 127mm OD 1/EA 1,511,800원 30 Day 0
R02-132-768 2096-09  PTFE Agitator High Viscosity 190mm OD 1/EA 1,338,900원 30 Day 0
R02-132-772 3055-10  PTFE Support Ring inchVinch cut 1/EA 482,800원 30 Day 0
R02-132-776 1965-X-150  Support Frame 1610mm OAH 1/EA 13,069,400원 30 Day 0
  R02-132-780 1968-Q-01  Drain Valve Zero Dead Space 2inch BP 1/EA 0원 30 Day 0 문의
R02-132-784 1963-B-10  Beam Torque Wrench 1/EA 271,600원 3 Day 1
R02-132-788 1963-B-14  7/16inch Deep Socket 6 Point, 1/4inch Drive 1/EA 19,400원 30 Day 0
  R02-132-836 2033-11  Electric Stir Motor 1/4Hp, 500RPM 1/EA 0원 30 Day 0 문의
  R02-132-848 2033-31  Stir Motor Controller (Electric Only) 1/EA 0원 30 Day 0 문의
R02-132-C68 1946-50  Vessel Cover, 5-Neck Flange 200mm 45/50 1/EA 3,836,900원 30 Day 0
